M14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various Applications

M14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various Applications
M14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various Applications

Grande immagine :  M14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various Applications

Dettagli:

Luogo di origine: Cina
Marca: GYD/BETT
Certificazione: UL/CE/Rhos
Numero di modello: M14

Termini di pagamento e spedizione:

Quantità di ordine minimo: 100 set
Prezzo: USD 1~3/set
Imballaggi particolari: Pacchetto 50*25*30 cm
Tempi di consegna: giorni 5~8work
Termini di pagamento: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacità di alimentazione: 100 set 10 giorni
Contatto
Descrizione di prodotto dettagliata
Evidenziare:

M14 waterproof panel mount connector

,

IP68 waterproof circular connector

,

2pin male female socket plug

M14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various Applications
Product Specifications
Model number: BETT-M14-15003F1051
Connector Body: Nylon(PA 66)+GF UL94V-0 1/16"
Sealing: Silica Gel
Contact: Brass with gold plated
Mating style: Thread
Temperature Rating: -40°C~+105°C
Current rating: 15A
Voltage rating: 300V
Waterproof Rating: IP68
Contact resistance: <=10mΩ
Insulation resistance: 1000MΩ at DC500V
Breakdown voltage: 1.5KV/1 minute
Pins range: 2 to 10 and 3+4/2+5 pin
Cable Range: 3.5-7.5mm
Terminal attach wire: Solder
Technical Specifications by Pin Count
Pin Number Voltage Rating Current Rating Contact Resistance Insulation Resistance IP Code Cable Range Breakdown Voltage
2300V15A<=10mΩ1000MΩIP68<=7.5mm1.5KV/1 minute
3300V15A<=10mΩ1000MΩIP68<=7.5mm1.5KV/1 minute
4300V15A<=10mΩ1000MΩIP68<=7.5mm1.5KV/1 minute
5110V5A<=10mΩ1000MΩIP68<=7.5mm1.5KV/1 minute
6110V5A<=10mΩ1000MΩIP68<=7.5mm1.5KV/1 minute
7110V5A<=10mΩ1000MΩIP68<=7.5mm1.5KV/1 minute
8110V5A<=10mΩ1000MΩIP68<=7.5mm1.5KV/1 minute
9110V5A<=10mΩ1000MΩIP68<=7.5mm1.5KV/1 minute
10110V5A<=10mΩ1000MΩIP68<=7.5mm1.5KV/1 minute
3+4110V15A+5A<=10mΩ1000MΩIP68<=7.5mm1.5KV/1 minute
2+5110V15A+5A<=10mΩ1000MΩIP68<=7.5mm1.5KV/1 minute

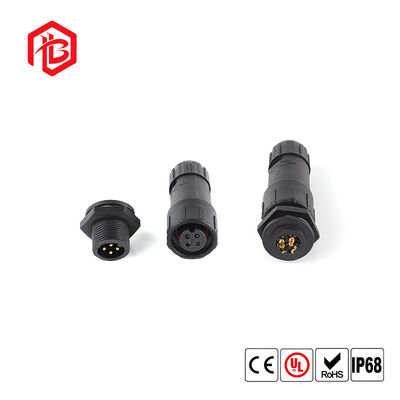

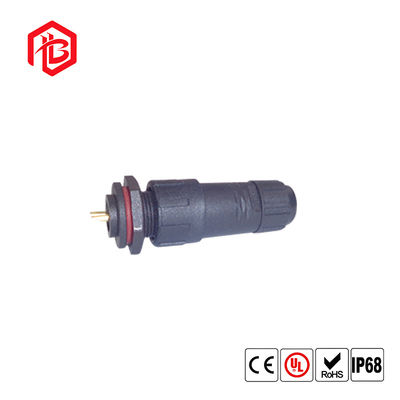

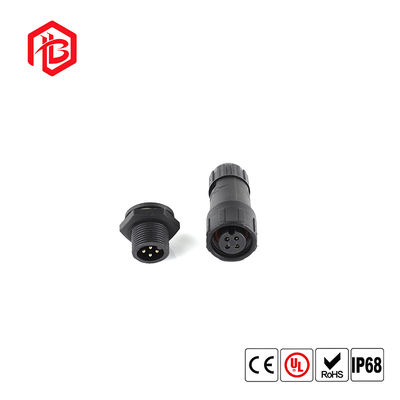

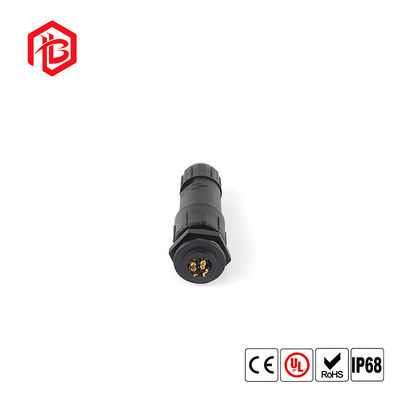

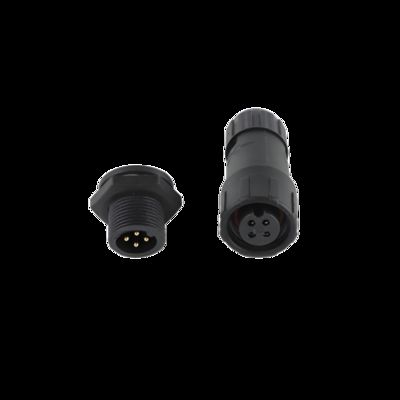

Product Images
M14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various Applications 0 M14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various Applications 1 M14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various Applications 2 M14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various Applications 3
Our Services
M14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various Applications 4 M14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various Applications 5
Company Information
Shenzhen Bett Electronic Co.,Ltd is a leader of a waterproof plug in China, we have ten years of factory experience, a professional research team, standardized production workshop.
We are specializing in a series 2-12 pins waterproof connector, including M12, aviation connector, panel mount connector, bulkhead connector, T/Y type connector(1 input 2-8 output connector), male to female connector, DC plug, assembled plug, etc.
Above items are applied in the LED industry, Marine, terrestrial heat, street lamp, aquaculture, laser, lighting, furniture, screens, the sensors, instruments, new energy industry, automotive electronics, industrial automation and so on.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
M14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various Applications 6 M14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various Applications 7 M14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various Applications 8 M14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various Applications 9 M14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various Applications 10 M14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various Applications 11 M14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various Applications 12
Certifications
M14 IP68 Waterproof Panel Mount Connector 2 3 4 5 6pin Male Female Socket Plug for Various Applications 13
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory from China. OEM&ODM service is available, welcome to contact us.
Q: How can I get samples?
A: Please tell me your courier number and your detail address, you need to pay for freight charges by yourself, but the samples is free.
Q: Can I choose other packing but carton?
A: Please kindly contact us, your requirement is considered.
Q: How do I make sure I can get good products in your company?
A: Our factory has gained ISO9001,ISO14001, and we pay great attention to the quality of products, from material purchase to product delivery, in this whole process, we have several product testing, therefore, we are selected by many domestic and foreign engineering and enterprises.
Q: Can you give me some advise about how to buy a correct product?
A: It's my pleasure to help you first of all. If you are interested in our products, one of the most effective and time-saving ways is that you show your drawing to us what you want, if you are not sure. We can give you a solution promptly.
Q: The product I need is different from your product specification, but I like your company's product very much. What should I do?
A: Any requirement from customers will be considered since we stick customer service to the center. The products you looking for can be customized by our professional R&D team.
Q: What is your payment terms?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q: How to contact with you?
A: Please give me your email, it is the best and the most effective method to keep in touch with each other, and i can provide you with professional solutions in the shortest time.
Q: Can I visit your factory?
A: Welcome to visit our factory, it is the best way to know more about us, we believe that you will be more firm to choose us to be your supplier.
